TAIZHOU ZHENDAI ELECTROMECHANICAL CO., LTD.
  • 4SD
  • 4SD

    Applications

    For water supply from wells or reservoirs

    For domestic use, for civil and industrial applications

    For garden use and irrigation


    Operating conditions

    Maximum fluid temperature up to +35℃

    Maximum sand content:0.25%

    Minimum well diameter:4"


    Motor and Pump

    Rewindable motor

    Three-phase:220V/60Hz or 380V/60Hz

    Single-phase: 110V/60Hz or220V/60Hz

    Equip with start control box or digital auto-control box

    Pumps are designed by casing stressed

    NEMA dimension standards

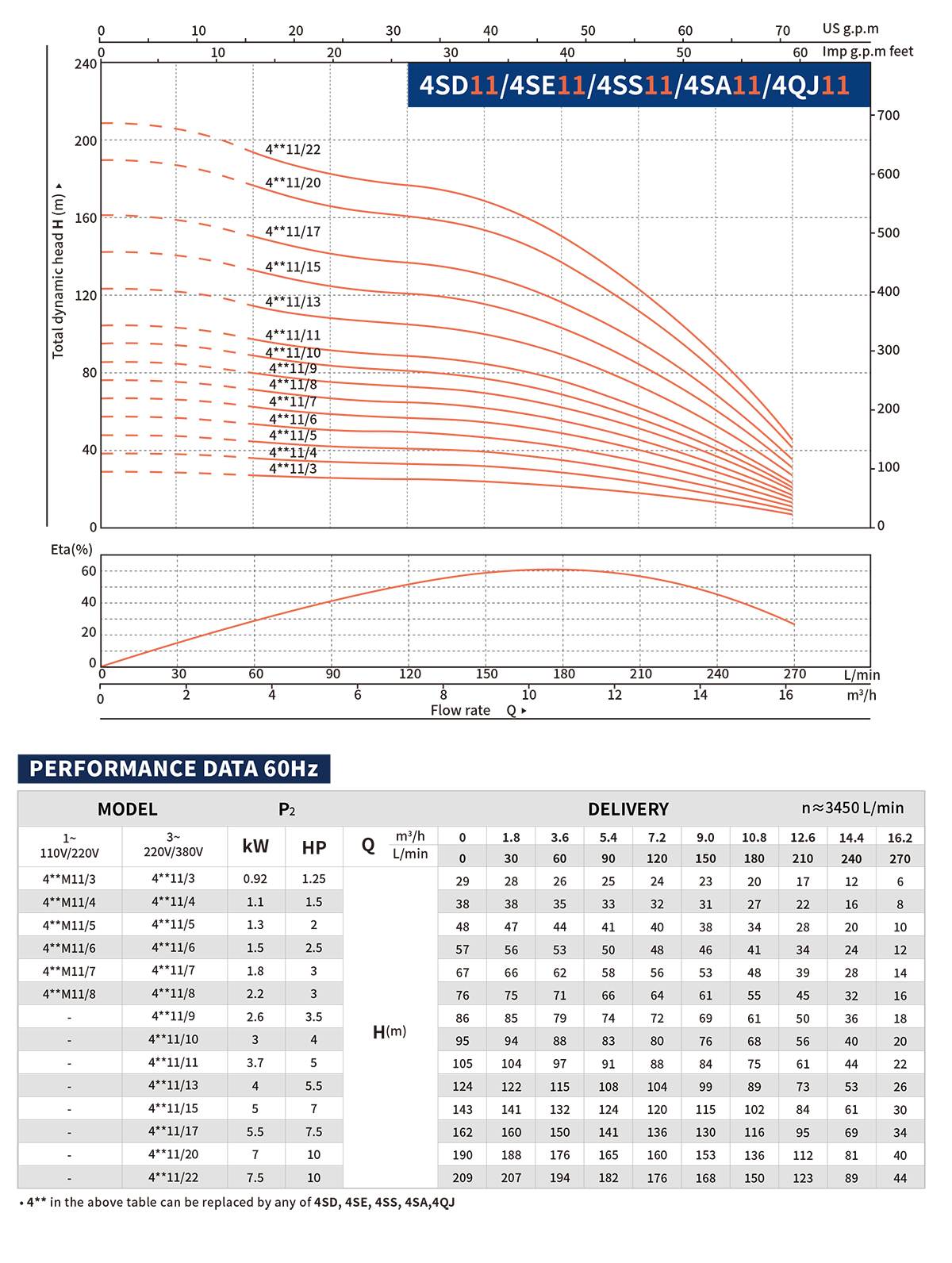

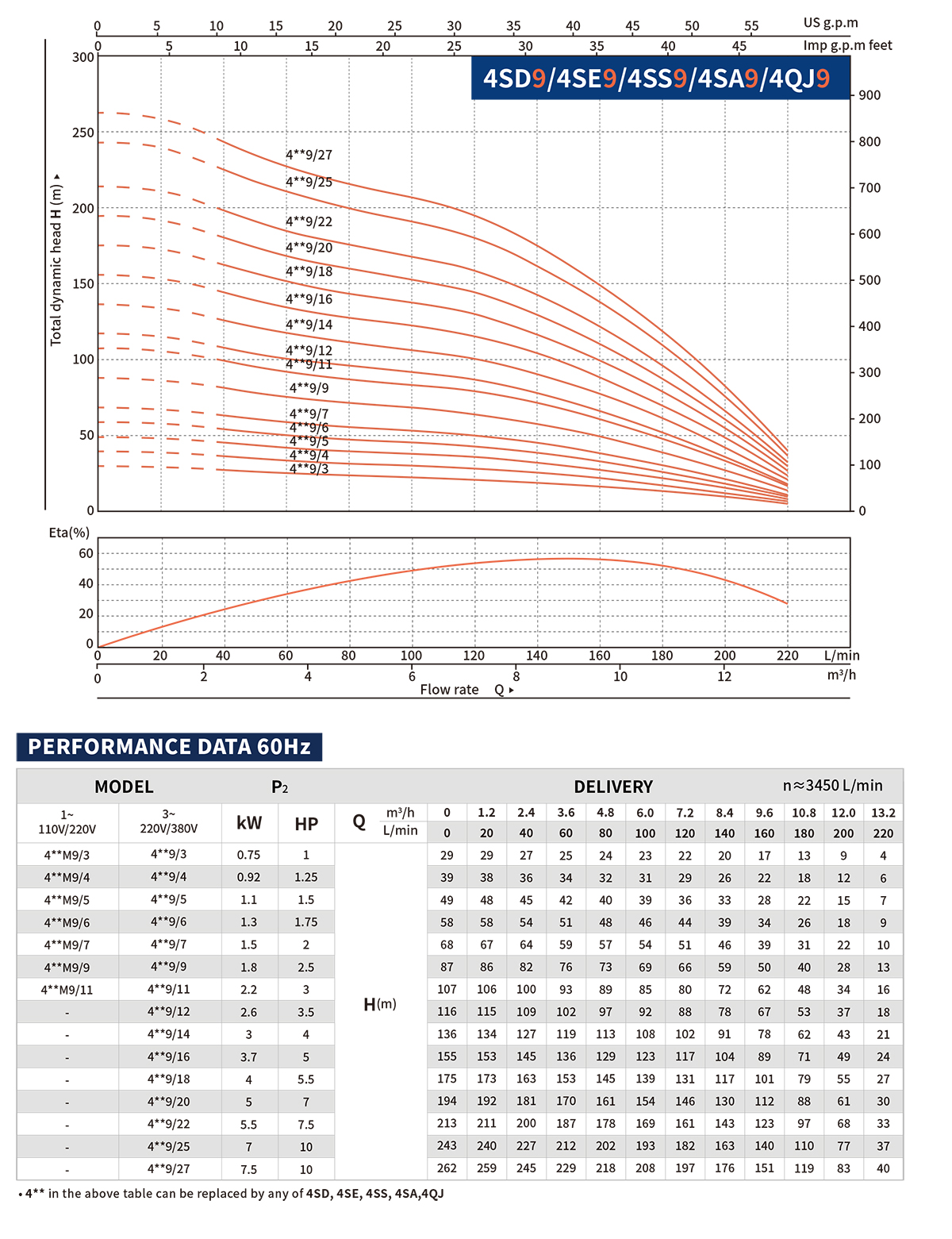

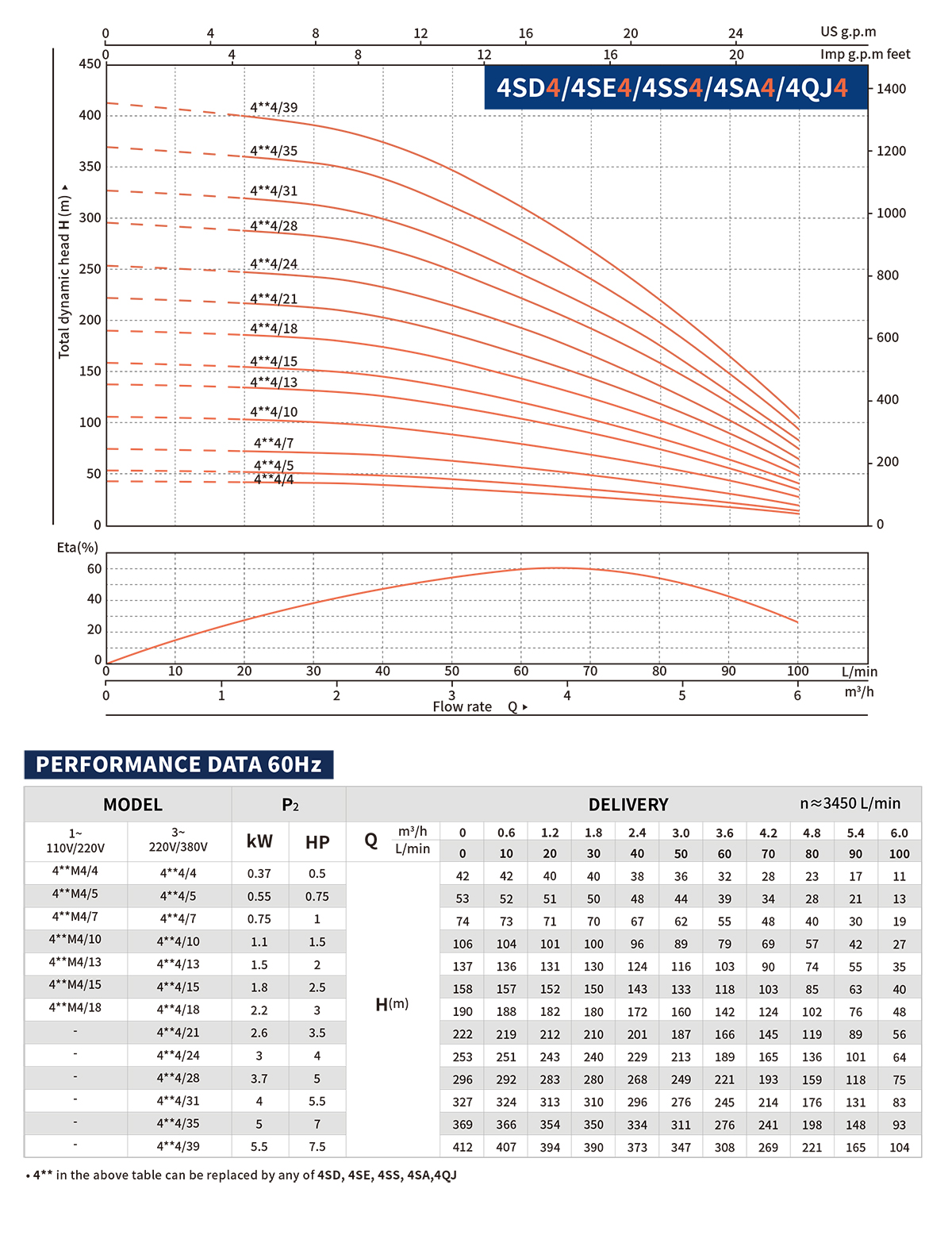

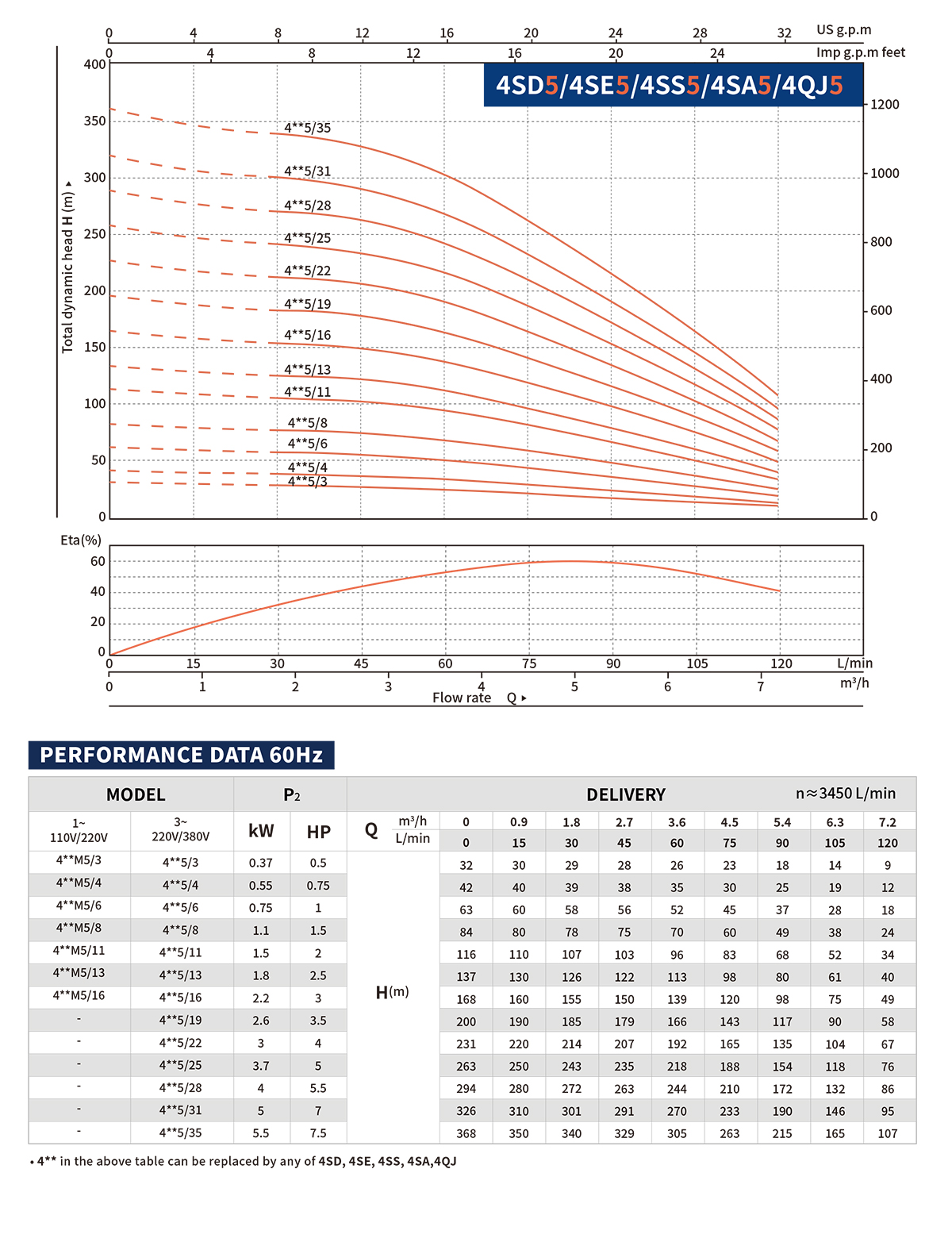

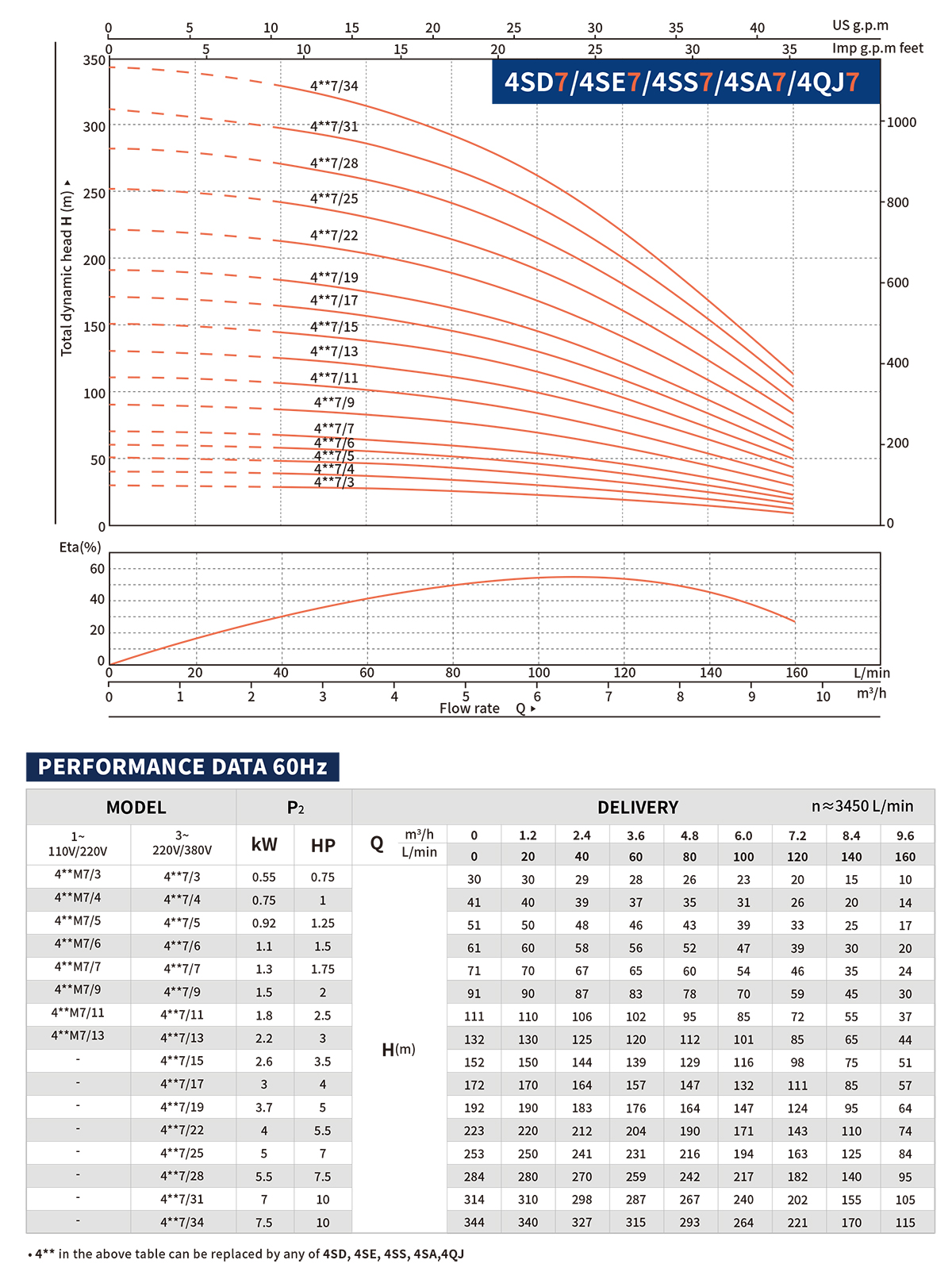

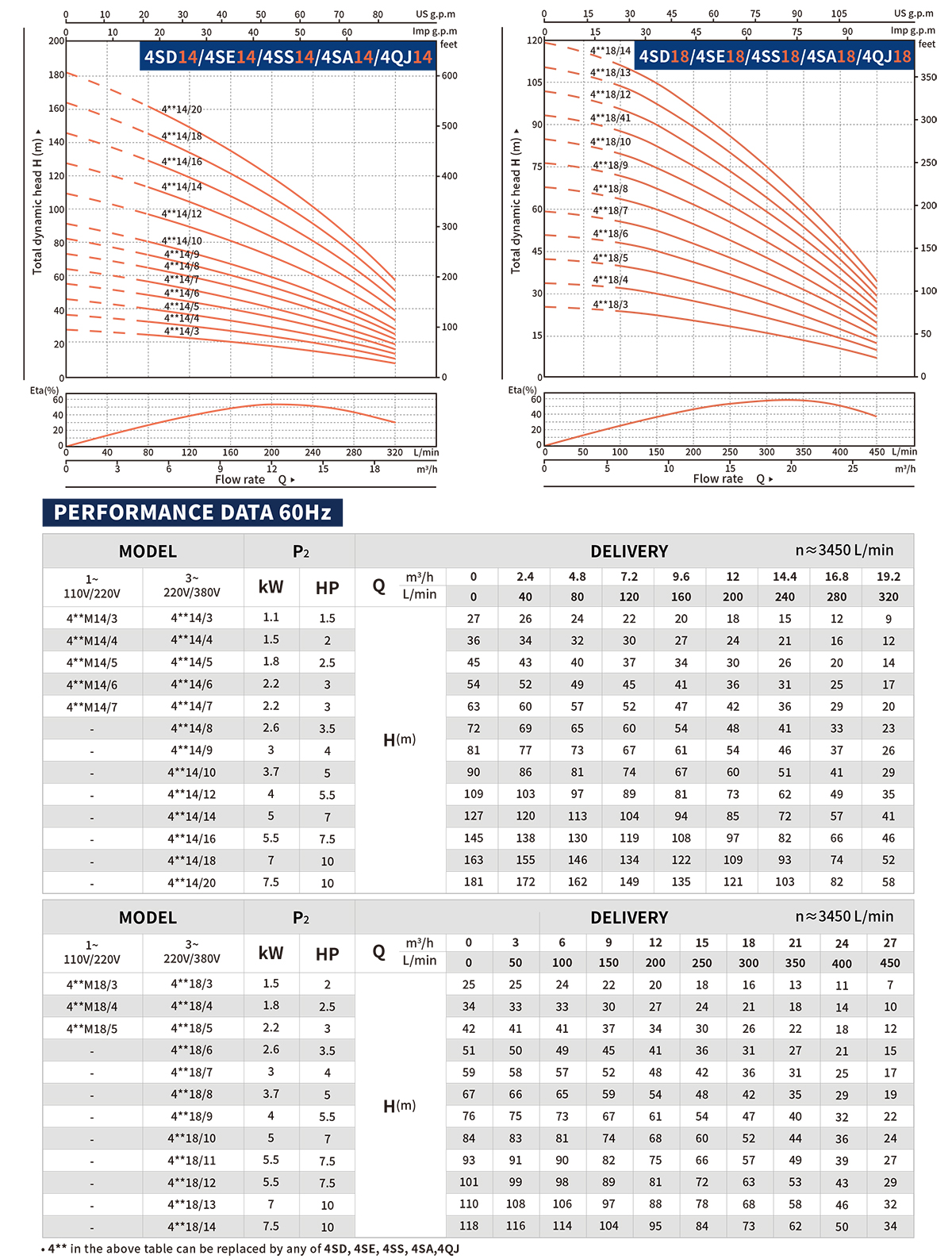

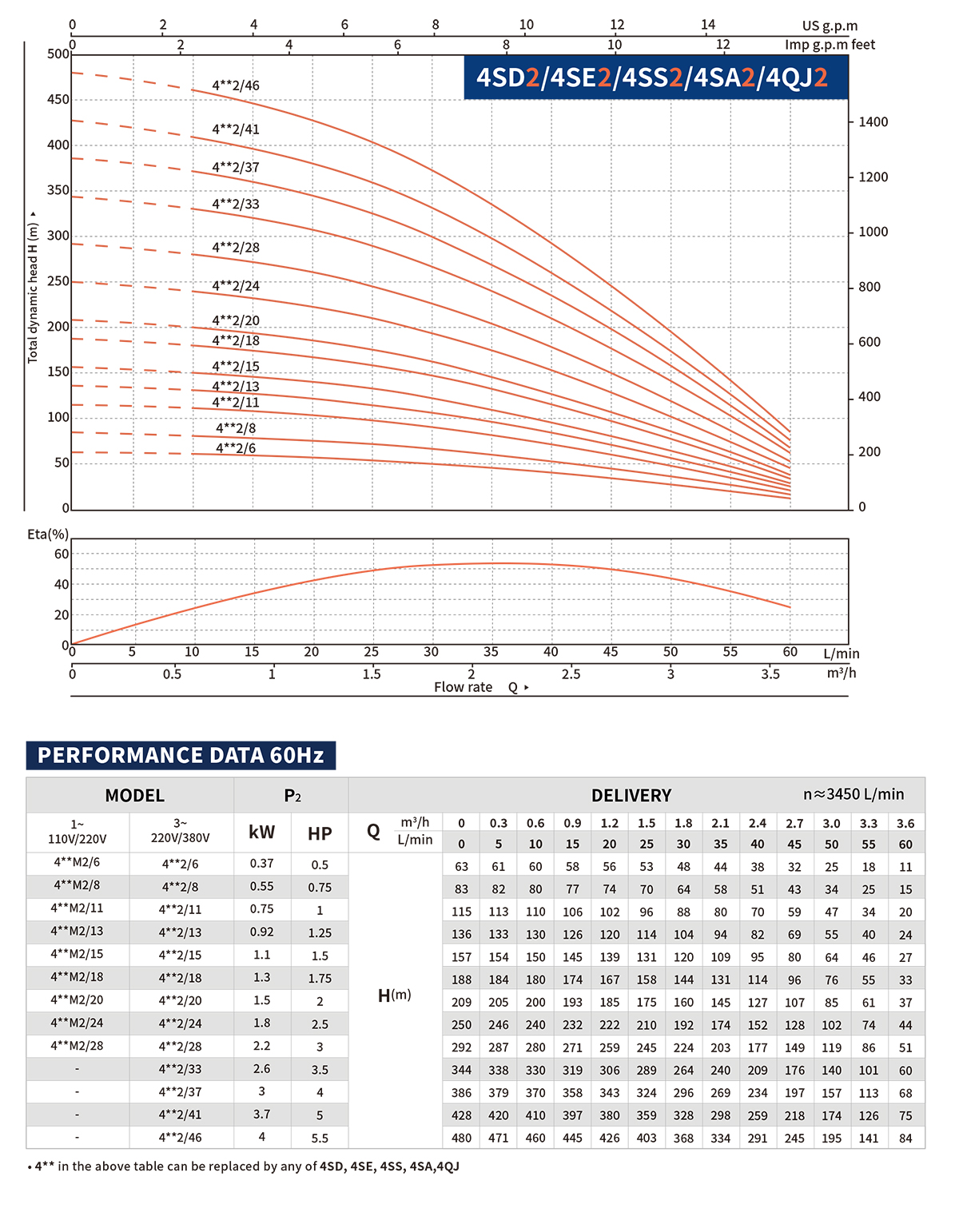

    Curve tolerance according to ISO 9906


    Options on request

    Special mechanical seal

    Other voltages or frequency 50Hz

    Single phase motor with built-in capacitor


    Warranty: 2 years

    (according to our general sales conditions)

    • 0.00
      0.00
Product Description

Applications

For water supply from wells or reservoirs

For domestic use, for civil and industrial applications

For garden use and irrigation


Operating conditions

Maximum fluid temperature up to +35℃

Maximum sand content:0.25%

Minimum well diameter:4"


Motor and Pump

Rewindable motor

Three-phase:220V/60Hz or 380V/60Hz

Single-phase: 110V/60Hz or220V/60Hz

Equip with start control box or digital auto-control box

Pumps are designed by casing stressed

NEMA dimension standards

Curve tolerance according to ISO 9906


Options on request

Special mechanical seal

Other voltages or frequency 50Hz

Single phase motor with built-in capacitor


Warranty: 2 years

(according to our general sales conditions)
