Applications
For water supply from wells or reservoirs
For domestic use, for civil and industrial applications
For garden use and irrigation
Operating conditions
Maximum fluid temperature up to +35C
Maximum sand content:0.25%
Minimum well diameter:4"
Motor and Pump
Rewindable motor
Three-phase: 220V/60Hz or380V/60Hz
Single-phase:110V/60Hz or220V/60Hz
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
NEMA dimension standards

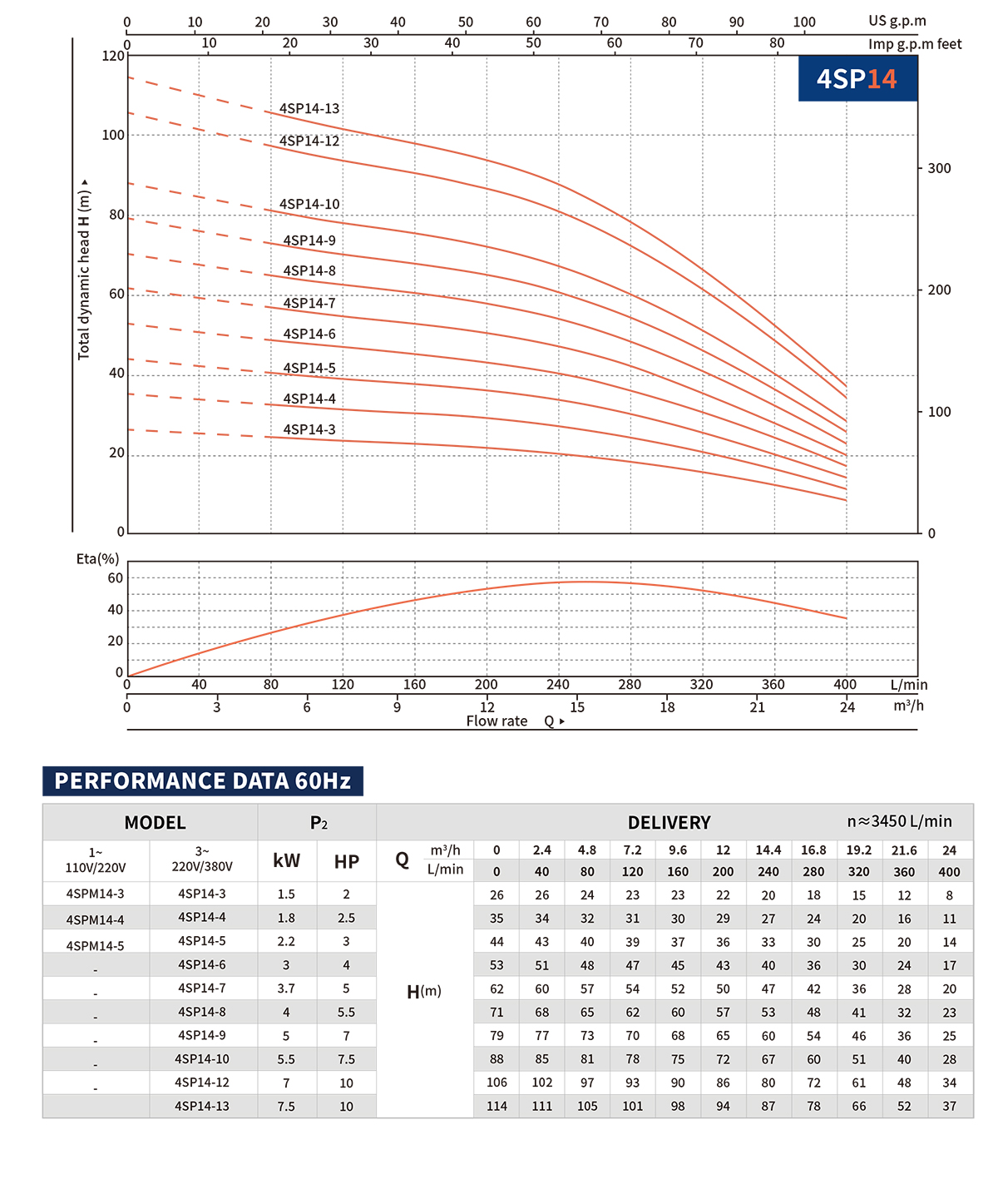

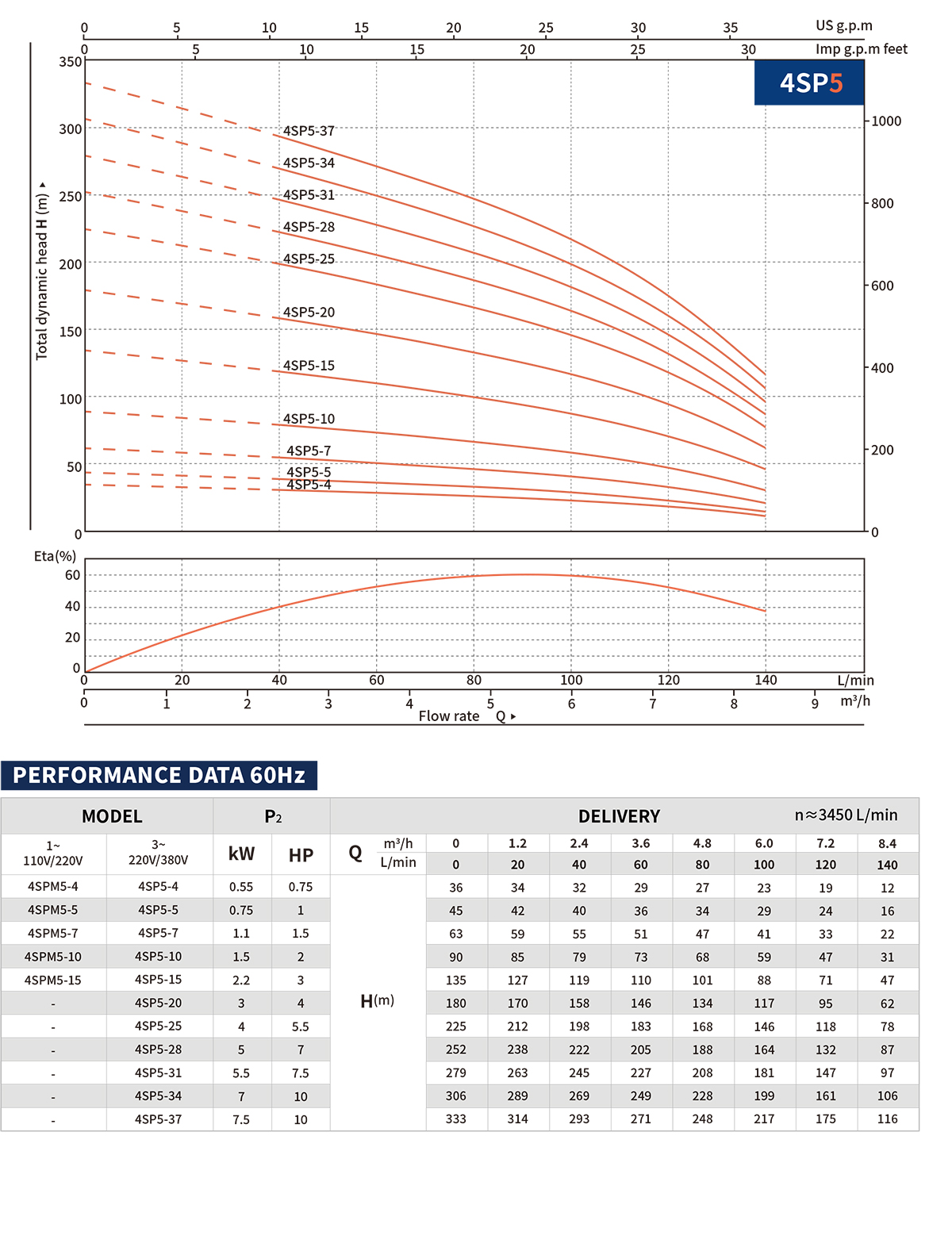

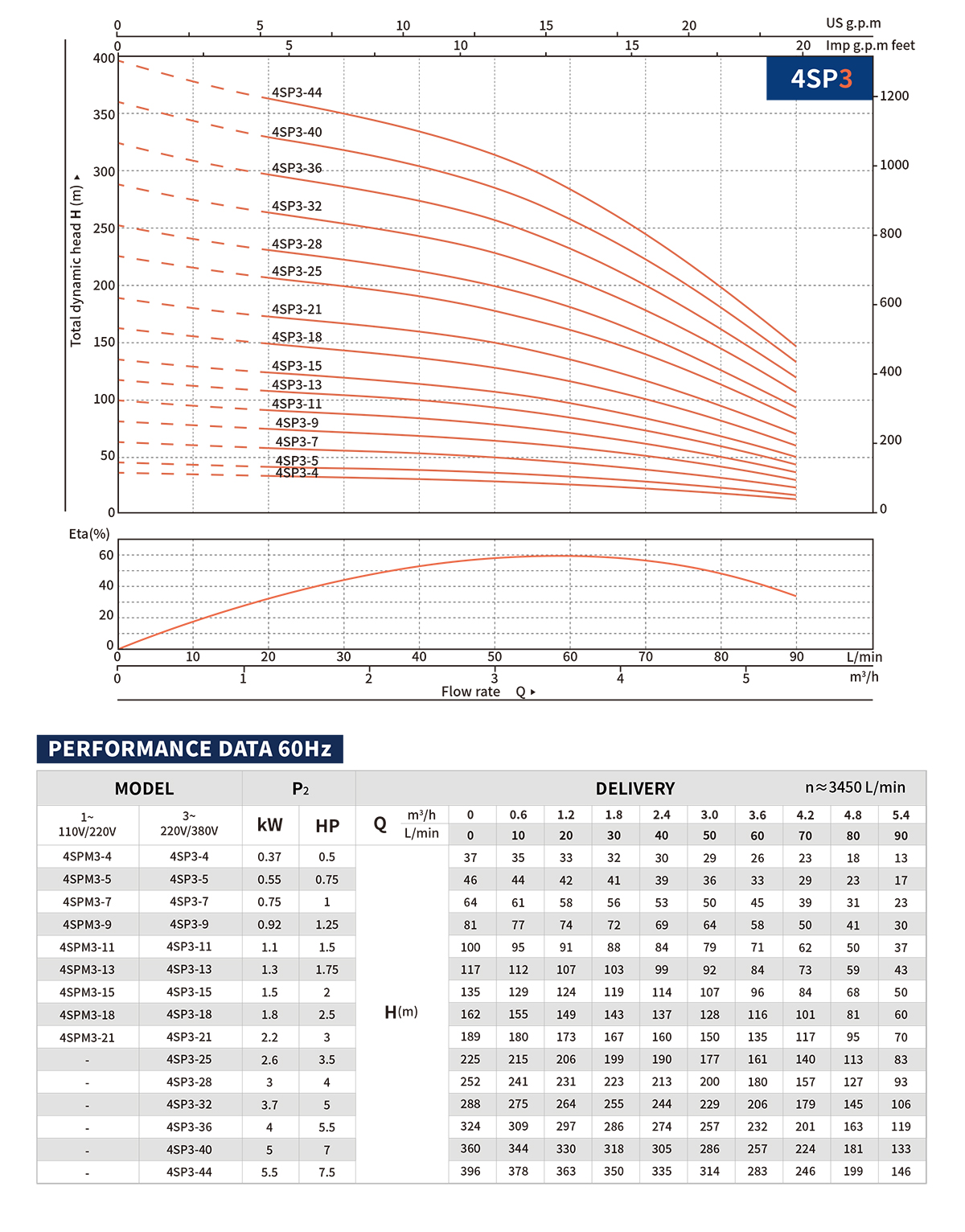

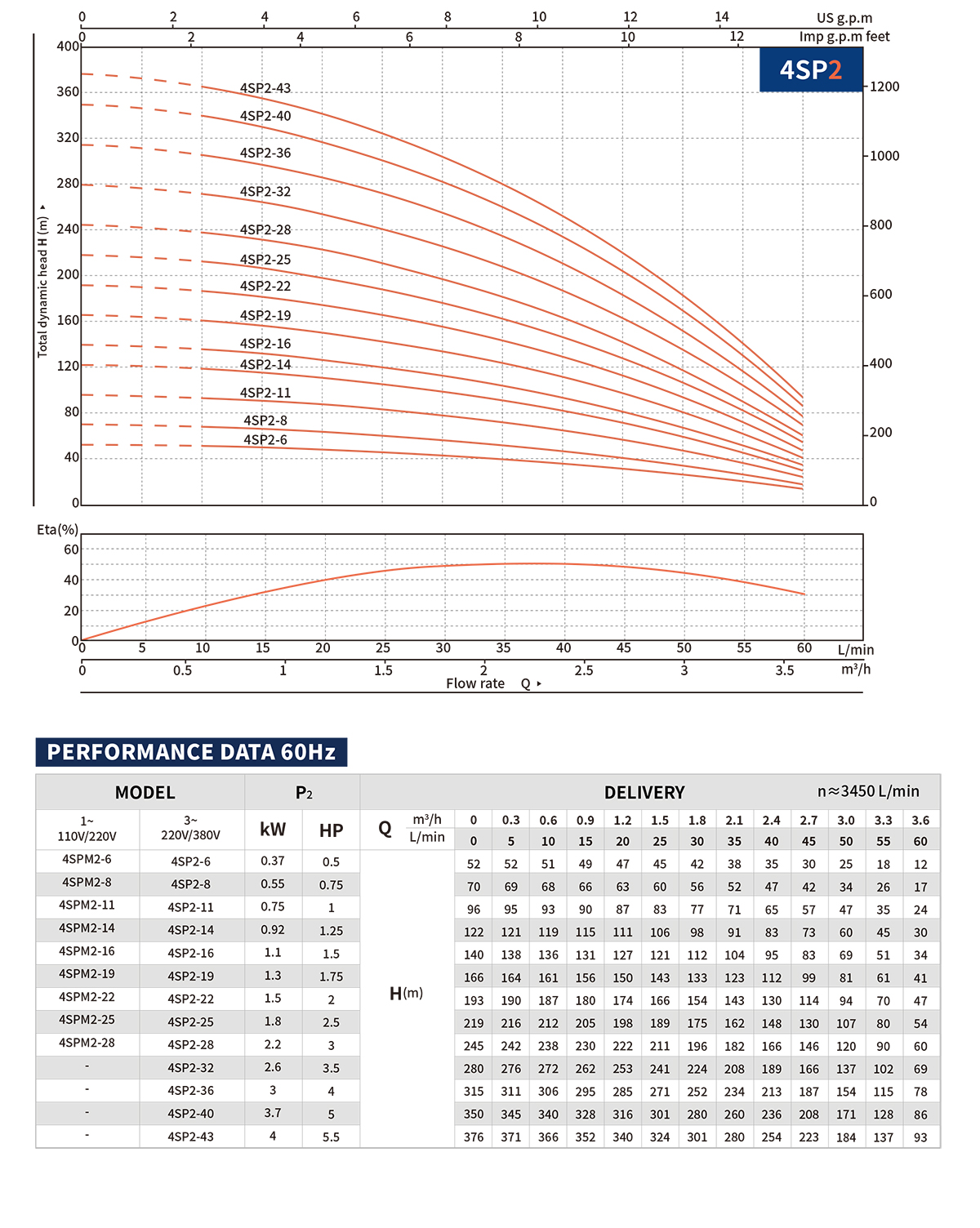

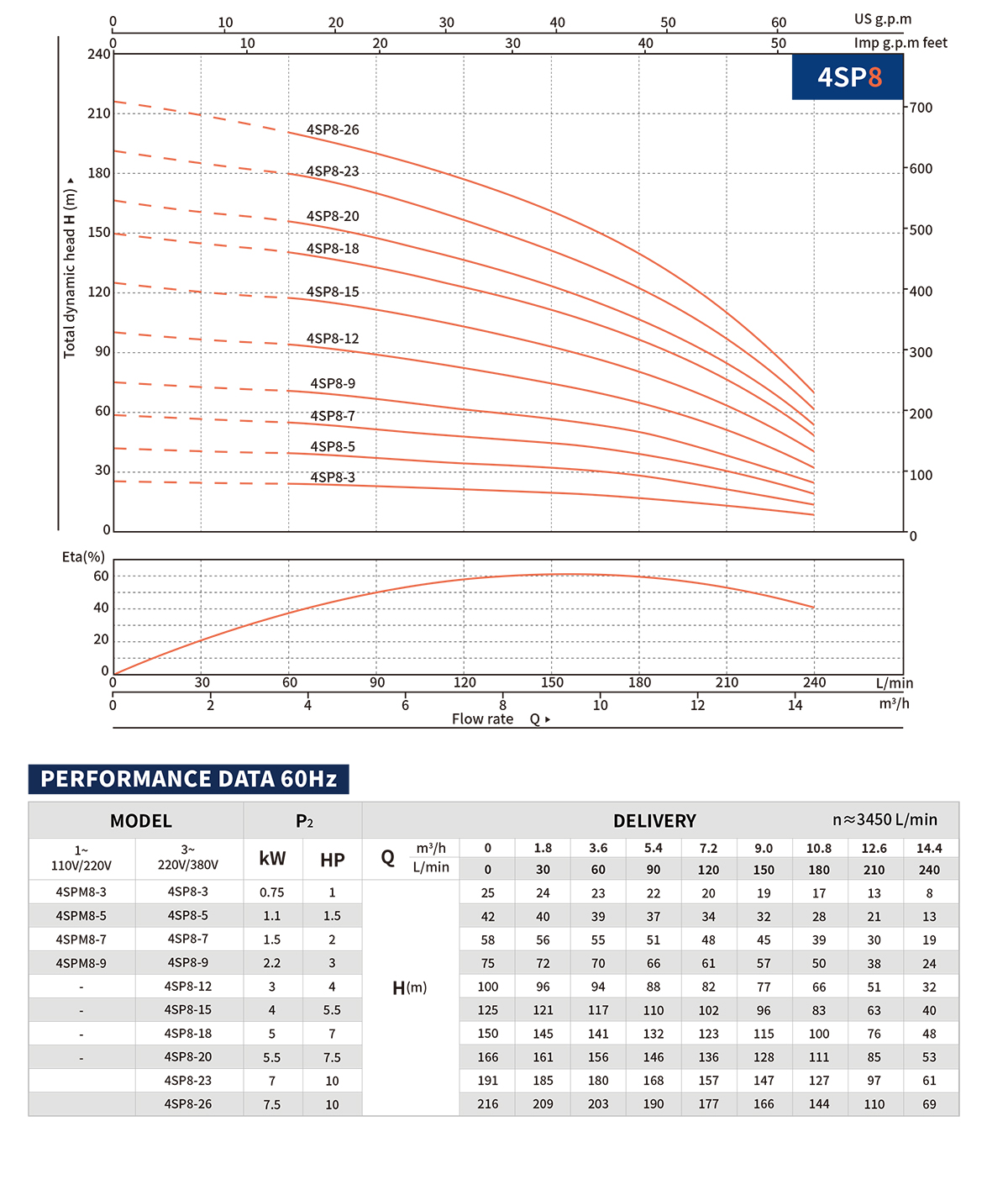

Curve tolerance according to ISO 9906
Options on request
Special mechanical seal
Other voltages or frequency 50Hz
Single phase motor with built-in capacitor
Warranty:2 years
(according to our general sales conditions)
