TAIZHOU ZHENDAI ELECTROMECHANICAL CO., LTD.
  • 3QGD/3QGDa
  • 3QGD/3QGDa

    Applications

    For water supply from wells or reservoirs

    For domestic use, for civil and industrial applications

    For garden use and irrigation


    Operating conditions

    Working Water Temperature:25.0℃

    Maximum Liquid Temperature:+35℃

    Minimum well diameter:3"


    Motor and Pump

    DC Motor

    Rated Voltage:220V/50Hz

    Motor Efficiency:80%

    Inlet/Outlet Diameter:0.025 meters

    Outlet Gauge Distance:1.50 meters

    Equip with start control box or digital auto-control box

    Pumps are designed by casing stressed

    NEMA dimension standards

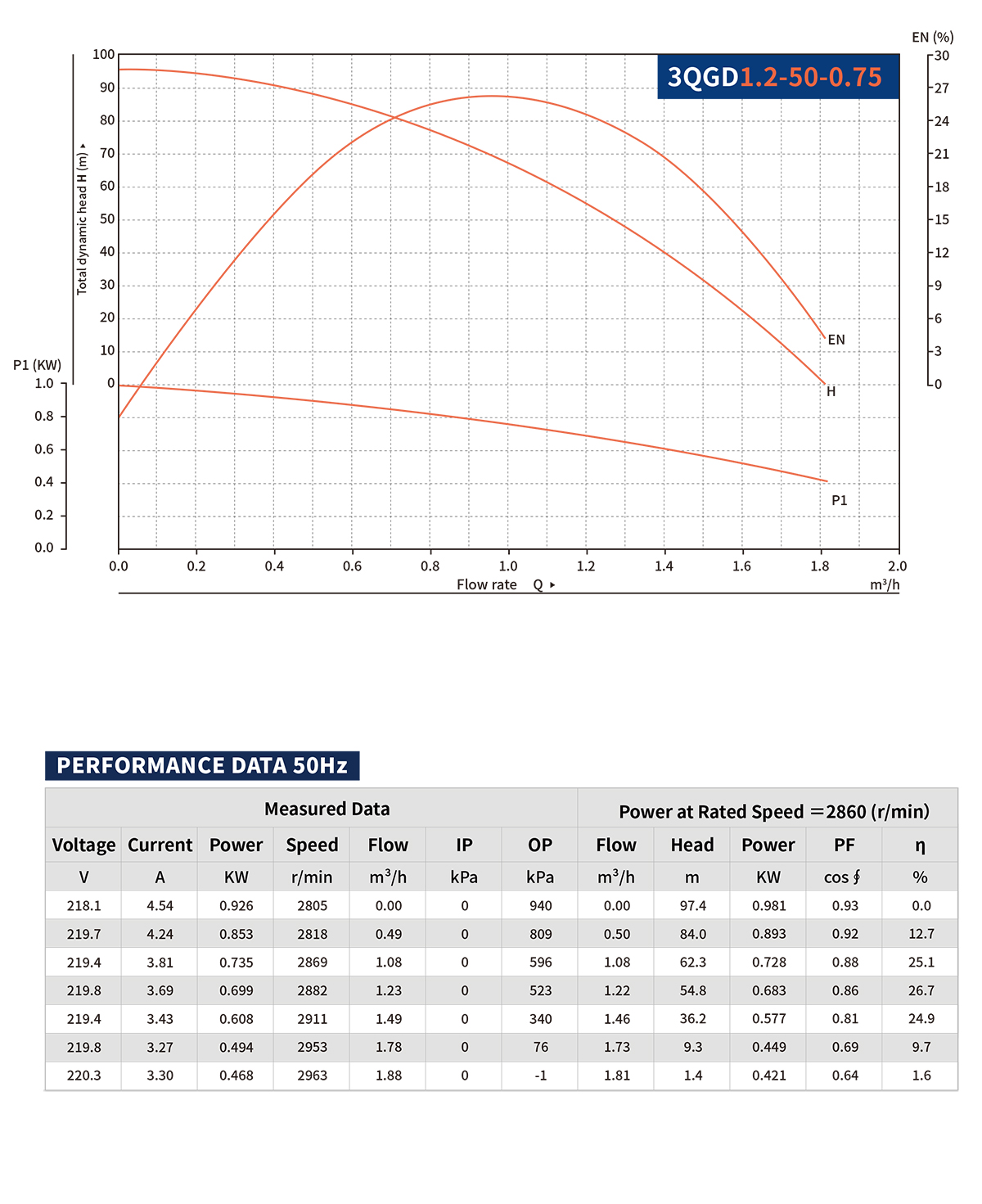

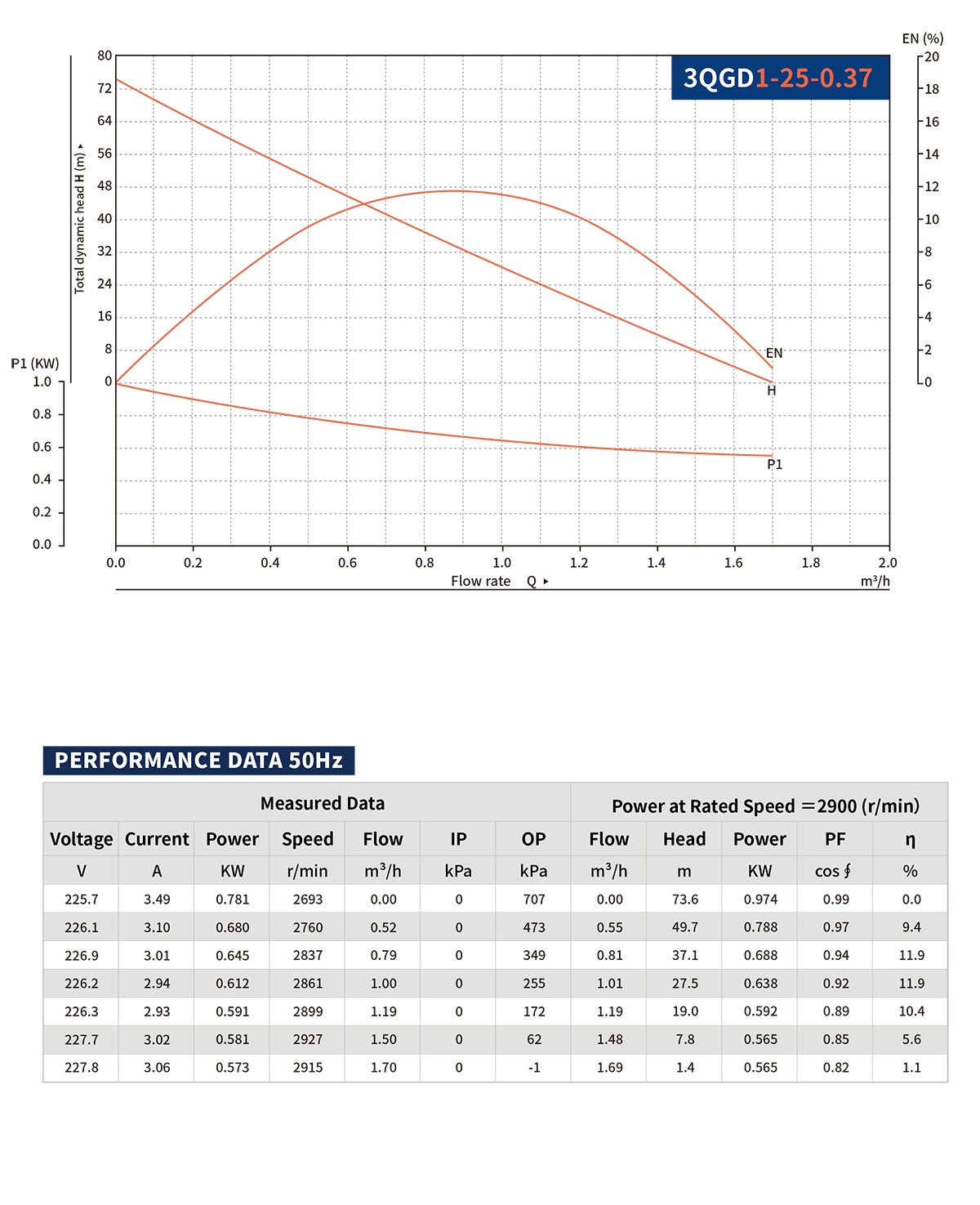

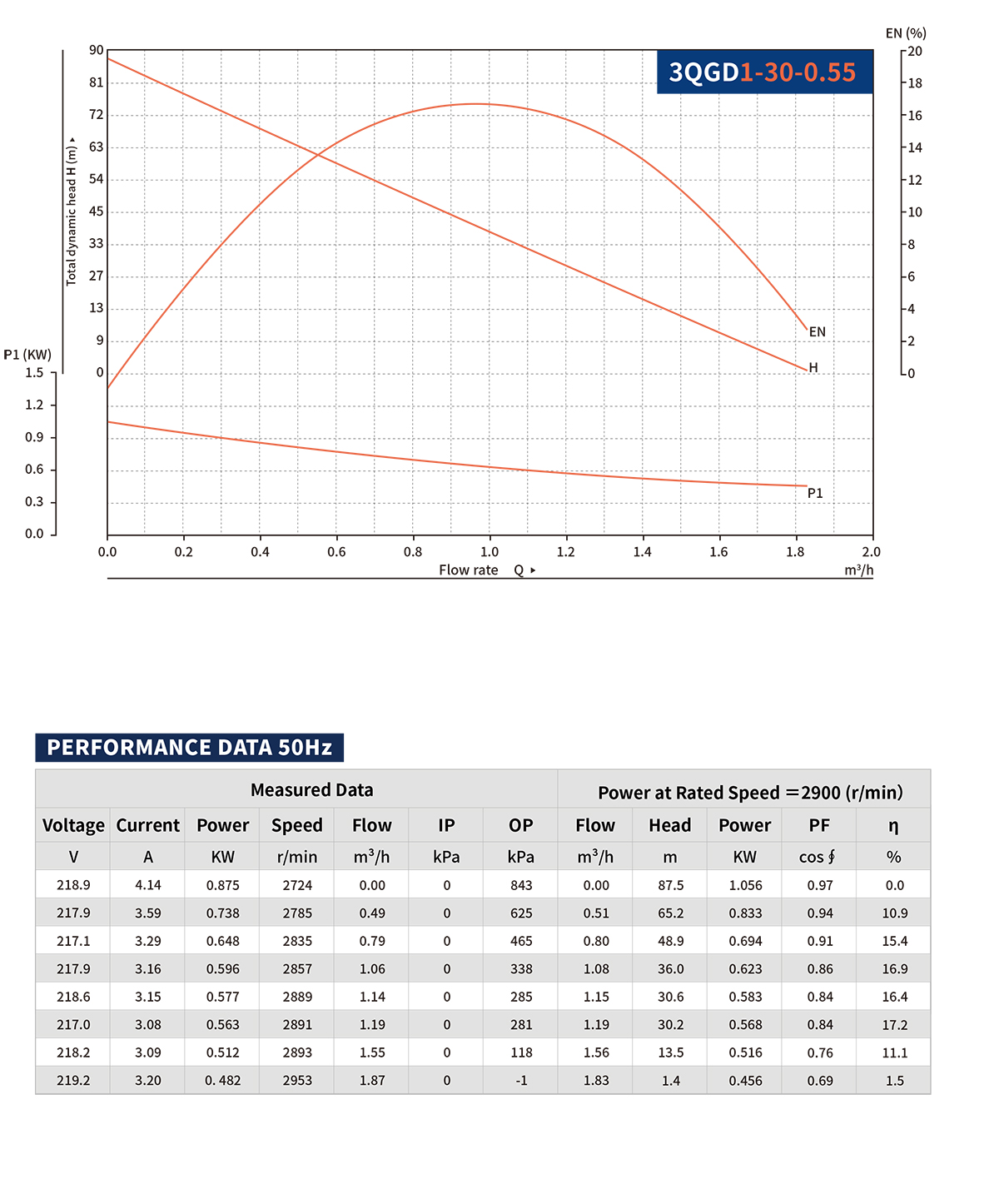

    Curve tolerance according to ISO 9906


    Warranty:2 years

    (according to our general sales conditions)

    • 0.00
      0.00
Product Description

Applications

For water supply from wells or reservoirs

For domestic use, for civil and industrial applications

For garden use and irrigation


Operating conditions

Working Water Temperature:25.0℃

Maximum Liquid Temperature:+35℃

Minimum well diameter:3"


Motor and Pump

DC Motor

Rated Voltage:220V/50Hz

Motor Efficiency:80%

Inlet/Outlet Diameter:0.025 meters

Outlet Gauge Distance:1.50 meters

Equip with start control box or digital auto-control box

Pumps are designed by casing stressed

NEMA dimension standards

Curve tolerance according to ISO 9906


Warranty:2 years

(according to our general sales conditions)
