Advantage of Brushless Solar Pump
1. Permanent magnet DC brushless synchronous motor:The efficiency is improved by 15%- 20%; Save energy;Reduce the consumption of solar panels.
2. Brass or stainless steel outlet/ connector/ oil cylinder.
3. Japanese NSK bearing: prolong the working life.
4. Alloy mechanical seal: Longer working life and high reliability.
5. Motor coil is made by automatic winding machine with centralized winding technology, motor efficiency is much improved.
6. The pump parts are processed by high- precision and fully automatic machines, strictly controlling the dimension precision and smoothness.
7. Intelligent water shortage and full water protection.

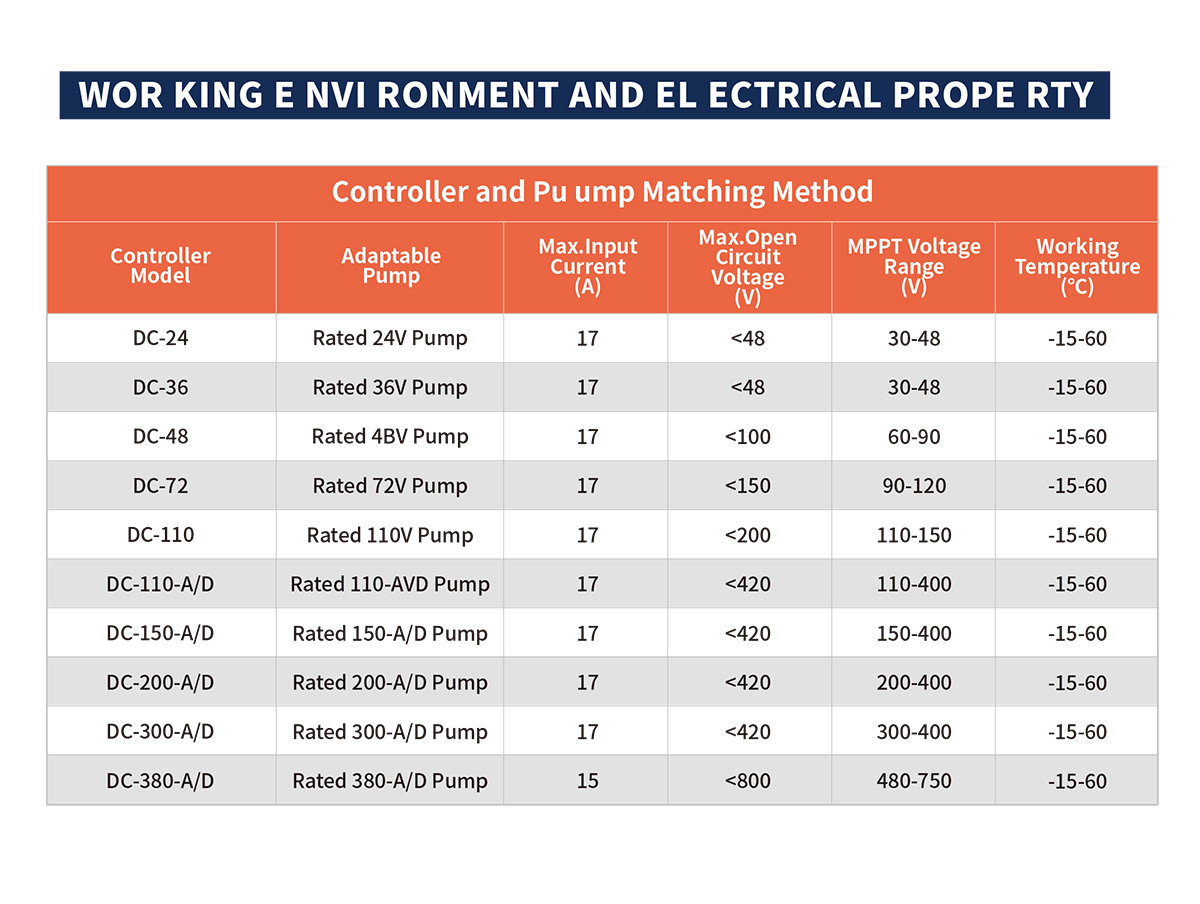

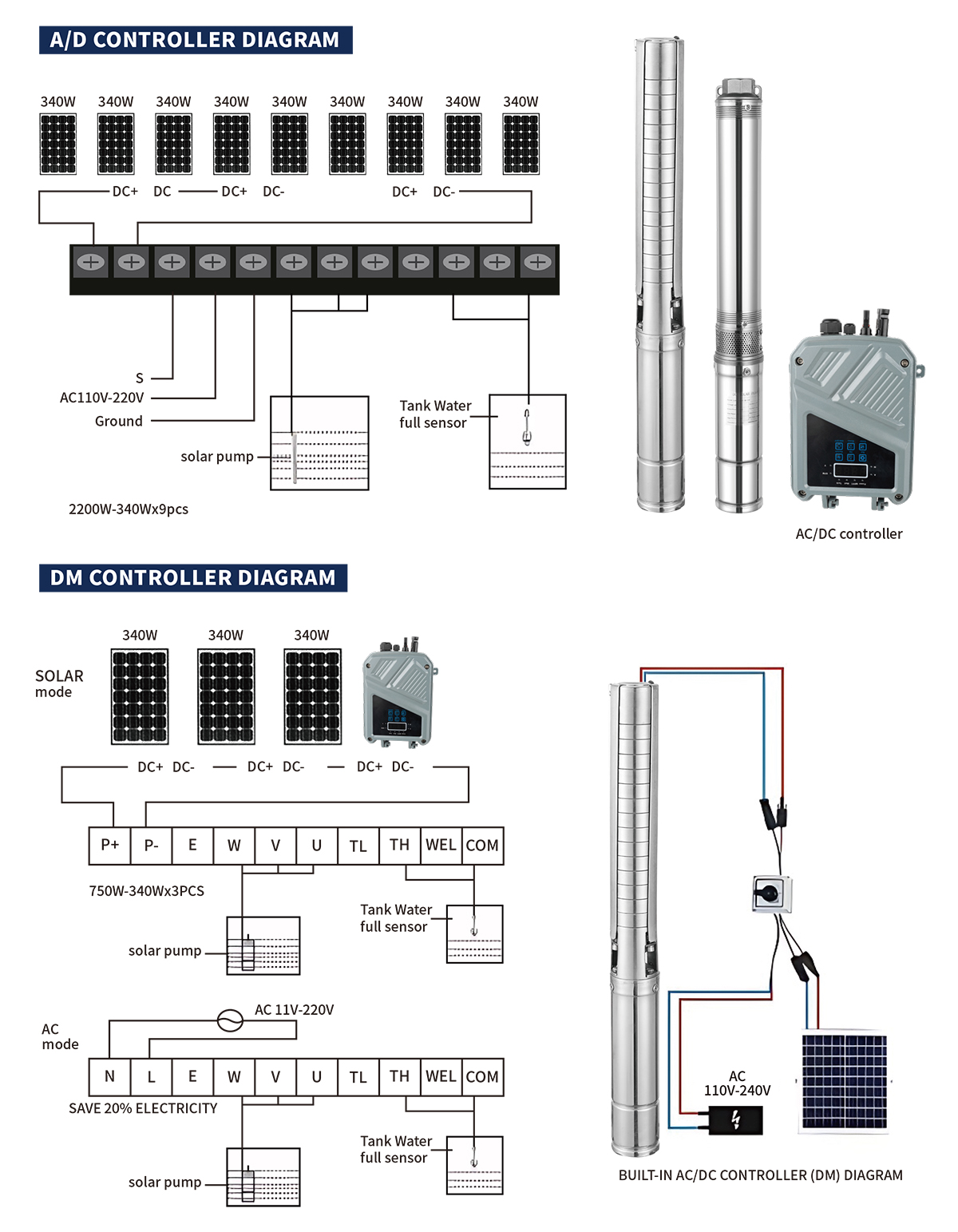

8. DC Controller and AC/DC Controller:
①Waterproof grade:IP65
② Ambient temperature:-15℃-60℃
③MPPT function, the solar power utilization rate is higher.
④ Automatic charging function, Guarantee the pump nor mally working, meanwhile charge the battery ;And when there is no sunshine ,the battery can make the pump continuously working.battery ;And when there is no sunshine ,the battery can make the pump continuously working
⑤ LED displays the power, voltage, current, speed etc working condition and error code
⑥ Frequency conversion function:lt can automatically run with frequency conversion according to the solar power,and user also can change the speed of pump manually
⑦Automatically start and stop working
⑧ Water proof and leak-proof: Double seal effect
⑨ Soft start: No impulse current, protect the pump motor High voltage/ Low voltage/ Over - current/High tem pera
Warranty:2 years
(according to our general sales conditions)
